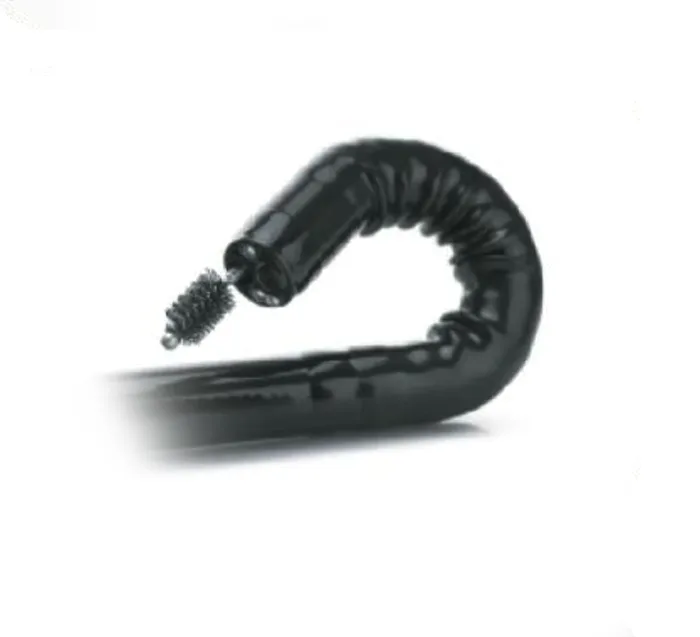

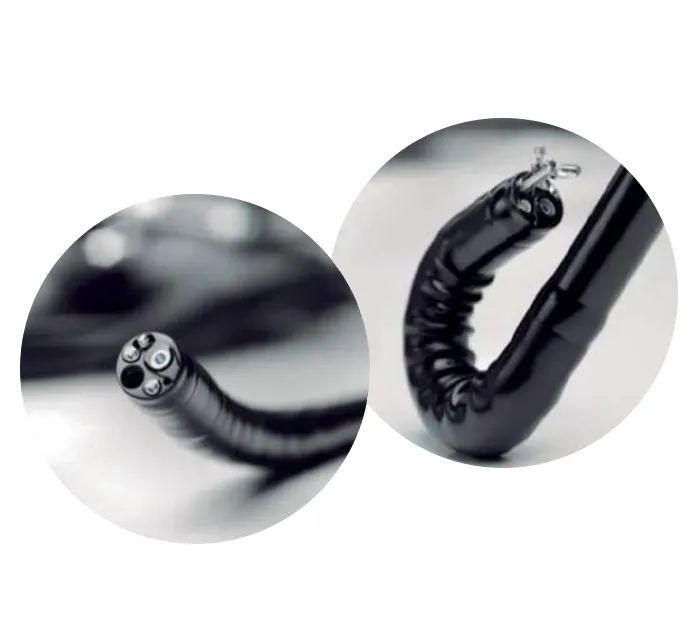

High-Definition Videocolonoscope Series 550
Equipped with a 2Mpx CMOS sensor, the Sonoscape EC-550 endoscopes provide high-definition images with clarity and optimize vision for all types of interventions, from routine to more complex.
| Parameters | SonoScape EC-550 | SonoScape EC-550T | SonoScape EC-550L | SonoScape EC-550L/T |
|---|---|---|---|---|
| Field of View | 140º | 140º | 140º | 140º |
| Depth of View | 3-100 mm | 3-100 mm | 3-100 mm | 3-100 mm |
| Diameter of Distal End | 12,0 mm | 12,0 mm | 12,9 mm | 12,9 mm |
| Diameter of Insertion Tube | 12,5 mm | 12,5 mm | 12,9 mm | 12,9 mm |
| Diameter of Working Channel | 3,8 mm | 3,8 mm | 4,2 mm | 4,2 mm |
| Angulations | Up 180º / Down 180º | Up 180º / Down 180º | Up 180º / Down 180º | Up 180º / Down 180º |
| Left 160º / Right 160º | Left 160º / Right 160º | Left 160º / Right 160º | Left 160º / Right 160º | |
| Working Length | 135 cm | 170 cm | 135 cm | 170 cm |
| Total Length | 170 cm | 195 cm | 170 cm | 195 cm |
| Jet Channel | Yes | Yes | Yes | Yes |
| One-step Connection | Yes | Yes | Yes | Yes |
| Optical Fiber Transmission | Yes | Yes | Yes | Yes |
